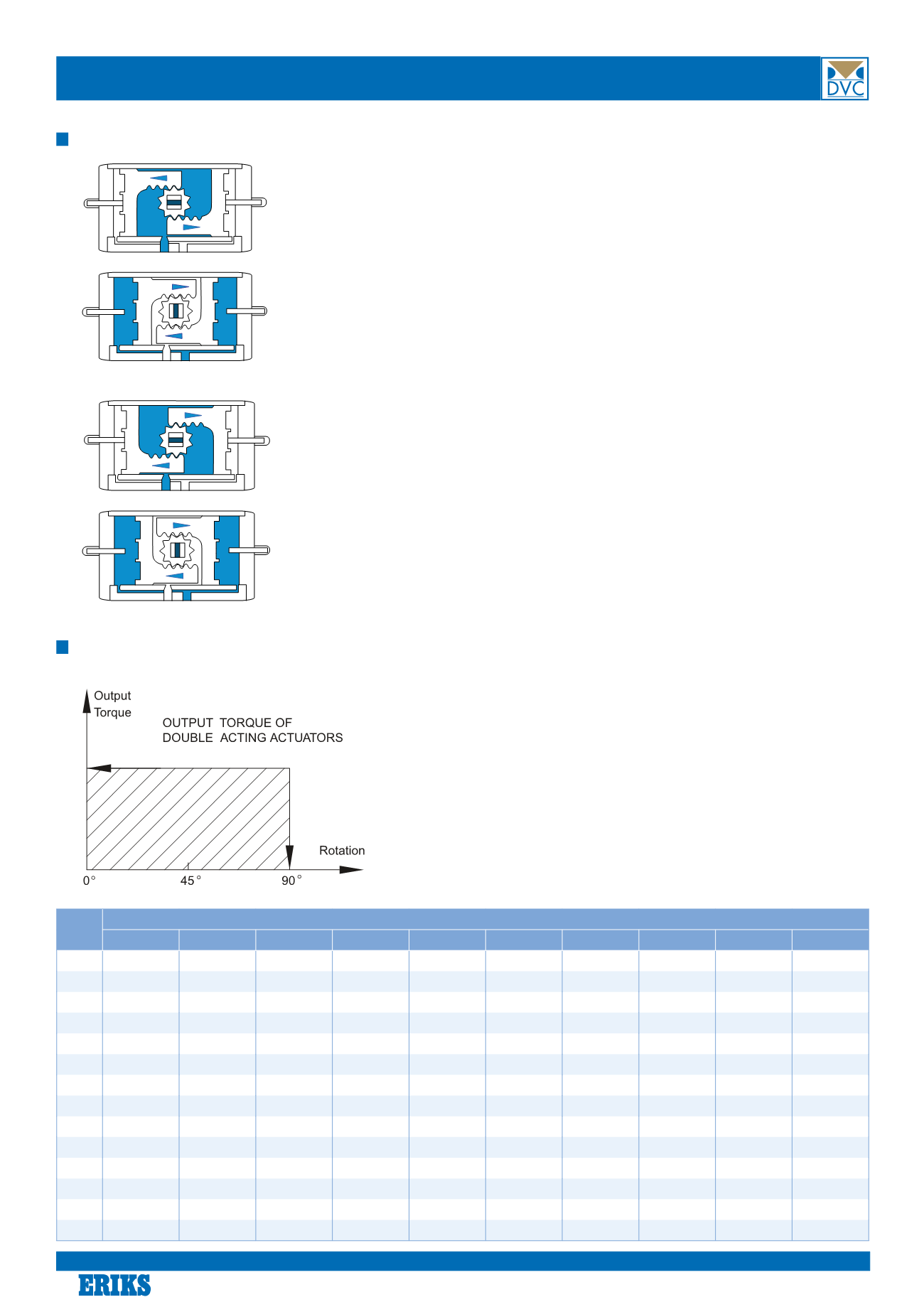

Type 505 Double Acting - Principle and Torque
Double Acting Actuators
Output Torque - Double Acting Actuators (Unit: Nm)
Size
Air Supply Pressure (Unit: Bar)
2
2.5
3
4
4.5
5
5.5
6
7
8
40
4.8
6.0
7.2
9.5
10.7
11.9
13.1
14.3
16.7
19.1
52
8.0
10.0
12.0
16.0
18.0
20.0
21.9
23.9
27.9
31.9
63
14.6
18.2
21.9
29.2
32.8
36.5
40.1
43.8
51.1
58.4
75
20.1
25.1
30.1
40.1
45.1
50.2
55.2
60.2
70.2
80.3
83
31.4
39.2
47.0
62.7
70.5
78.4
86.2
94.1
109.7
125.4
92
45.1
56.4
67.7
90.3
101.6
112.9
124.1
135.4
158.0
180.6
105
66.1
82.7
99.2
132.2
148.8
165.3
181.8
198.4
231.4
264.5
125
100.3
125.4
150.5
200.6
225.7
250.8
275.9
301.0
351.1
401.3
140
171.0
213.8
256.5
342.0
384.8
427.5
470.3
513.0
598.5
684.0
160
266.0
332.5
399.0
532.0
598.5
665.0
731.5
798.0
931.0
1064.0
190
425.6
532.0
638.4
851.2
957.6
1064.0
1170.4
1276.8
1489.6
1702.4
210
532.0
665.0
798.0
1064.0
1197.0
1330.0
1463.0
1596.0
1862.0
2128.0
240
769.5
961.9
1154.3
1539.0
1731.4
1923.8
2116.1
2308.5
2693.3
3078.0
270 1169.6
1462.1
1754.5
2339.3
2631.7
2924.1
3216.5
3508.9
4093.7
4678.6
CCW:
Air to Port A forces the pistons outwards, causing the
pinion to turn counter clockwise while the air is being
exhausted from Port B.
Air to Port B forces the pistons inwards, causing the
pinion to turn clockwise while the air is being exhausted
from Port A.
CW:
Air to Port A forces the pistons outwards, causing the
pinion to turn clockwise while the air is being exhausted
from Port B.
Air to Port B forces the pistons inwards causing the pin-
ion to turn counter clockwise while the air is being ex-
hausted from Port A.
CCW is standard at Dansk Ventil Center
A B
A B
A B
A B
Valves with a difference
