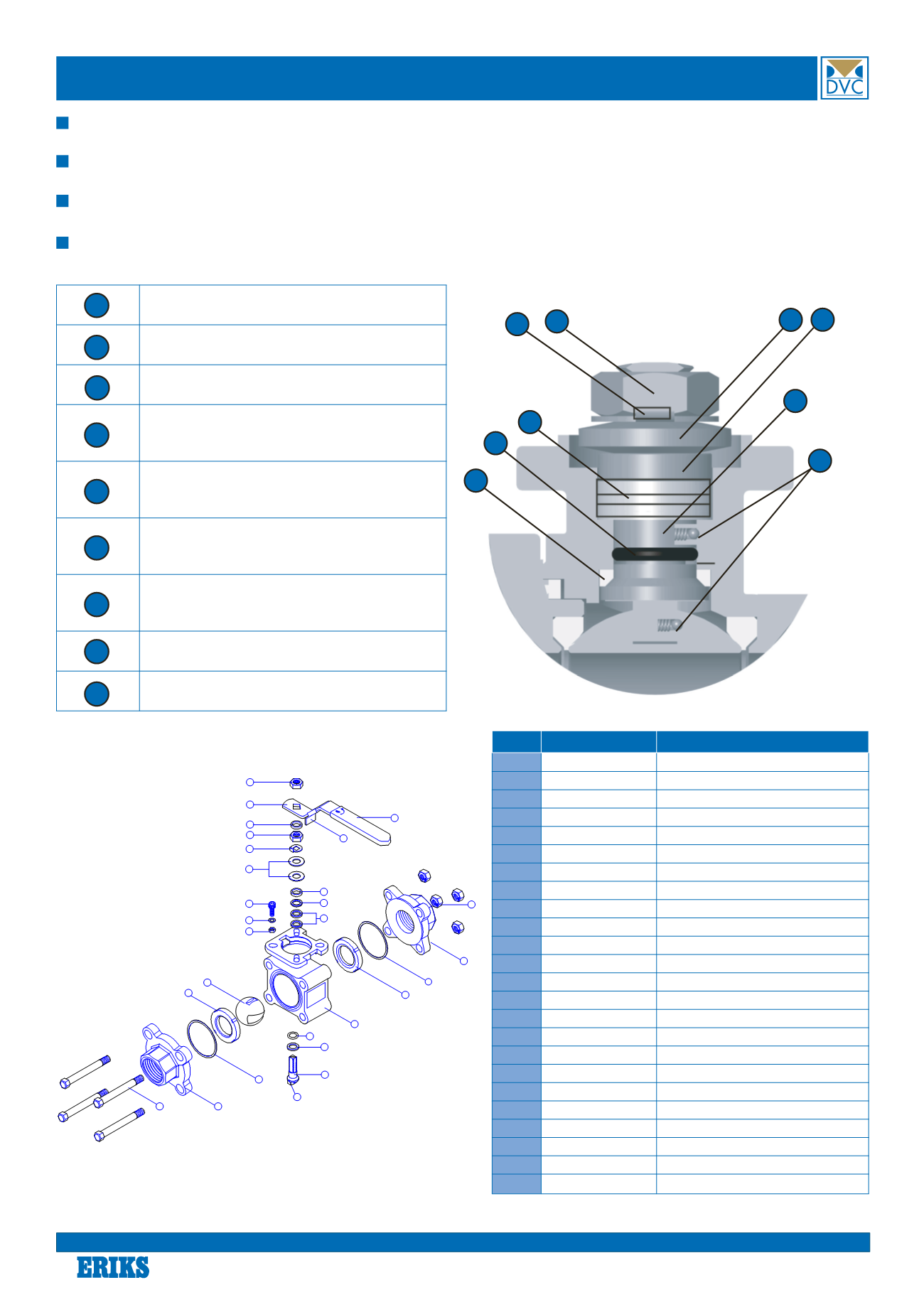

Antistatic stem with pyramid segment as
1.st stage sealing 45 degrees slope.
O-ring as 2. stage sealing element.
Anti static devices stem-to-ball and
stem-to-body as standard.
Smooth stem finish reduces seal friction
and operating torque prolonging service
intervals.
V-ring in multiple layers expanding side-
ways and offering the 3rd sealing ele-
ment.
Gland of stainless steel equalizes the
compressive forces on the sealing sys-
tem.
Belleville washers keep the sealing sys-
tem optimal during changing pressures
and temperatures.
Lock saddle stabilizing the stem nut
avoiding loosening during operation.
Stem nut compresses the entire stem
system to make the sealing optimal.
Unique SealMax
®
triple-sealing stem packing system.
MAINTENANCE FREE - LIVE LOADED
EXTRA LONG SERVICE INTERVALS
TA - LUFT APPROVED.
FIRE-SAFE APPROVED API 607 4
TH.
EDITION
5
4
3
2
1
8 9
7 6
1
2
3
4
5
6
7
8
9
11
13
21
16
9
20
8
11
10
17
18
24
19
23
22
7
1
4
5
2
6
15
3
4
5
2
12
14
≥DN65FB includes backup for seat ring in stainless steel
* Type 1211
A216 Gr. WCB
POS.
description
stainless steel (1311)
1
BODY *
STAINLESS STEEL CF8M
2
CONNECTION *
STAINLESS STEEL CF3M
3
V-NOTCH BALL
STAINLESS STEEL CF8M
4
SEAT PACKING
PTFE WITH 25% CARBON
5
JOINT GASKET
PTFE
6
STEM SEAL
75% PTFE/20% GLASFIBRE/5% GRAPHITE
7
STEM
STAINLESS STEEL 1.4401
8
STEM SEAL
75% PTFE/20% GLASFIBRE/5% GRAPHITE
9
GLAND
STAINLESS STEEL 1.4301
10
LOCK SADDLE
STAINLESS STEEL 1.4301
11
STEM NUT
STAINLESS STEEL 1.4301
12
HANDLE
STAINLESS STEEL 1.4301
13
HANDLE SLEEVE
VINYL
14
BELLEVILLE WASHER STAINLESS STEEL 1.4310
15
BOLT
STAINLESS STEEL 1.4301
16
NUT
STAINLESS STEEL 1.4301
17
BELLEVILLE WASHER STAINLESS STEEL 1.4310
18
STOP BOLT
STAINLESS STEEL 1.4301
19
NUT
STAINLESS STEEL 1.4301
20
BUSHING
REINFORCED PTFE
21
LOCKING DEVICE
STAINLESS STEEL 1.4301
22
ANTI-STATIC DEVICE STAINLESS STEEL 1.4301
23
PYRAMID SEGMENT PTFE WITH 25% CARBON
24
WASHER
STAINLESS STEEL 1.4301
